GitHub Actions: Netflix Deployment

7 min readDec 8, 2023

Step1: Launch an Ec2 Instance

To launch an AWS EC2 instance with Ubuntu 22.04 using the AWS Management Console, sign in to your AWS account, access the EC2 dashboard, and click “Launch Instances.” In “Step 1,” select “Ubuntu 22.04” as the AMI, and in “Step 2,” choose “t2.medium” as the instance type. Configure the instance details, storage, tags, and security group settings according to your requirements. Review the settings, create or select a key pair for secure access, and launch the instance. Once launched, you can connect to it via SSH using the associated key pair.

Step2A: Install Docker and Run Sonarqube Container

Connect to your Ec2 instance using Putty, Mobaxtreme or Git bash and install docker on it.

sudo apt-get update
sudo apt install docker.io -y
sudo usermod -aG docker ubuntu
newgrp docker
sudo chmod 777 /var/run/docker.sock

Pull the SonarQube Docker image and run it.

After the docker installation, we will create a Sonarqube container (Remember to add 9000 ports in the security group).

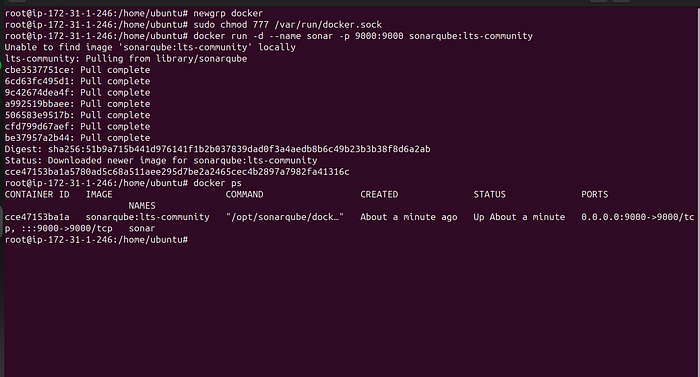

docker run -d --name sonar -p 9000:9000 sonarqube:lts-community

Now copy the IP address of the ec2 instance

<ec2-public-ip:9000

Provide Login and password

login admin
password admin

Step2B: Integrating SonarQube with GitHub Actions

Integrating SonarQube with GitHub Actions allows you to automatically analyze your code for quality and security as part of your continuous integration pipeline.

We already have Sonarqube up and running

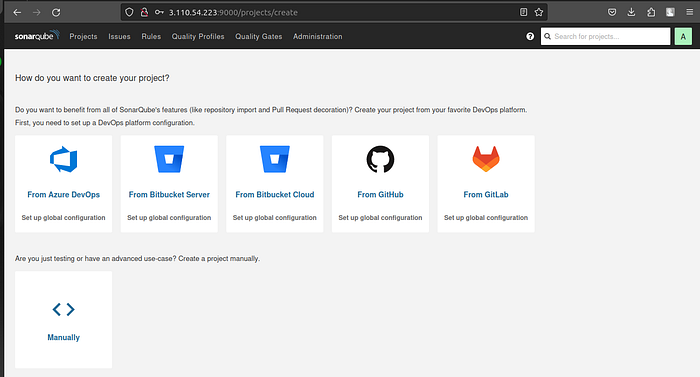

On Sonarqube Dashboard click on Manually

Next, provide a name for your project and provide a Branch name and click on setup

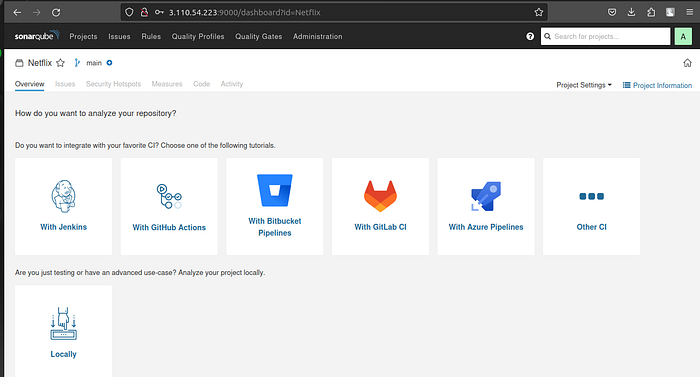

On the next page click on With GitHub actions

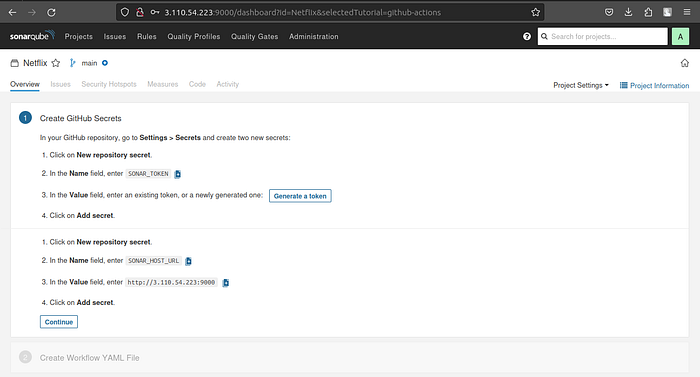

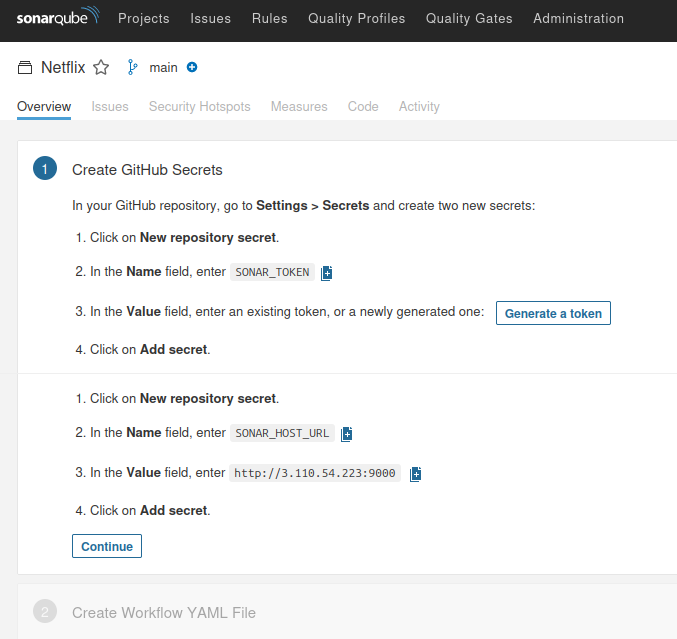

This will Generate an overview of the Project and provide some instructions to integrate

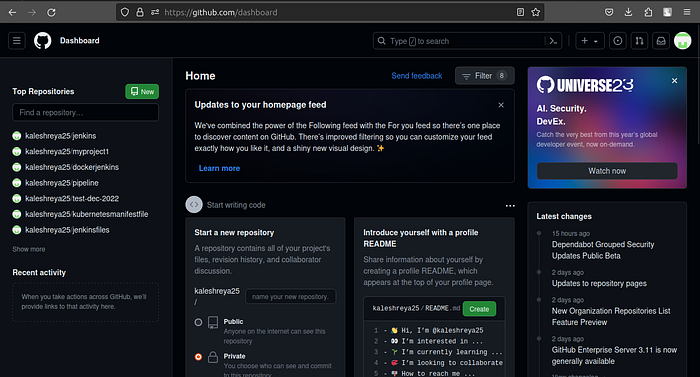

Let’s Open your GitHub and select your Repository

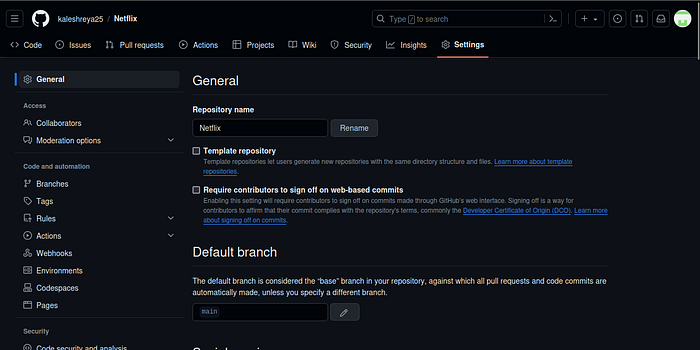

In my case it is Netflix-clone and Click on Settings

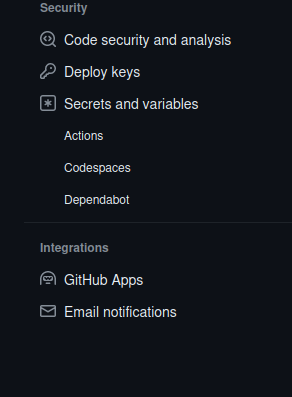

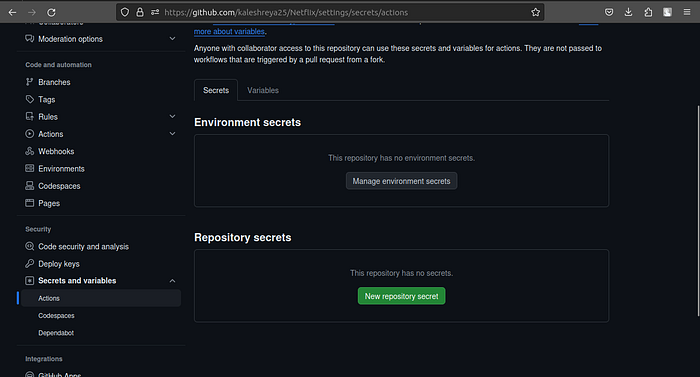

Search for Secrets and variables and click on and again click on actions

Now go back to Your Sonarqube Dashboard

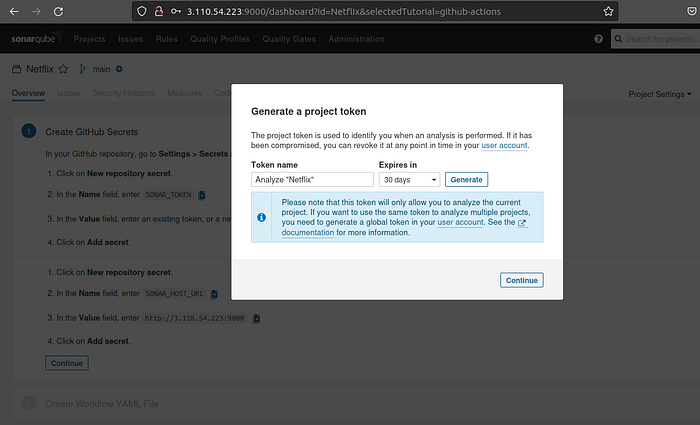

Copy SONAR_TOKEN and click on Generate Token

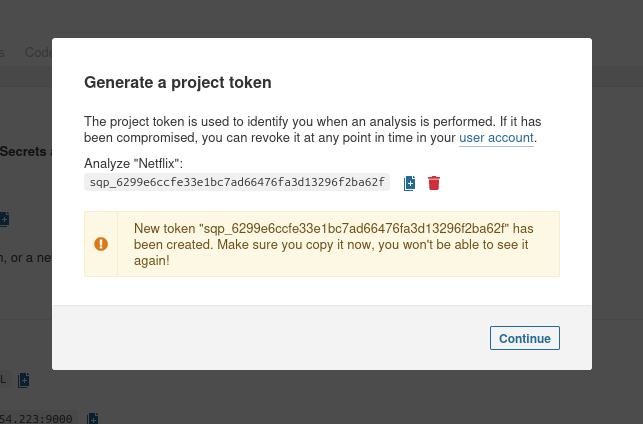

Click on Generate

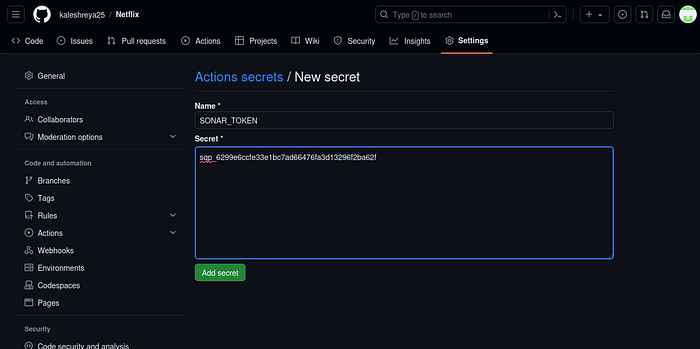

Now go back to GitHub and Paste the copied name for the secret and token

Name: SONAR_TOKEN

Secret: Paste Your Token and click on Add secret

Now go back to the Sonarqube Dashboard

Copy the Name and Value

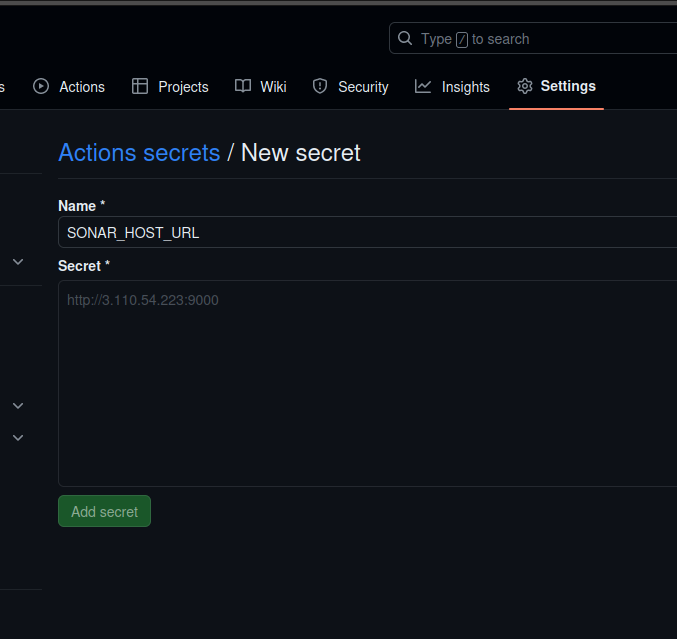

Go to GitHub now and paste-like this and click on add secret

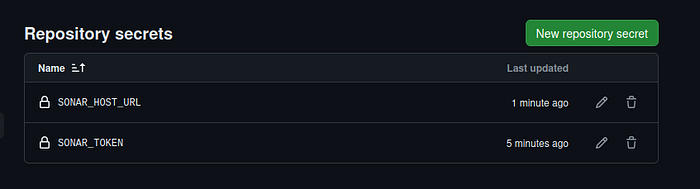

Our Sonarqube secrets are added and you can see

Go to Sonarqube Dashboard and click on continue

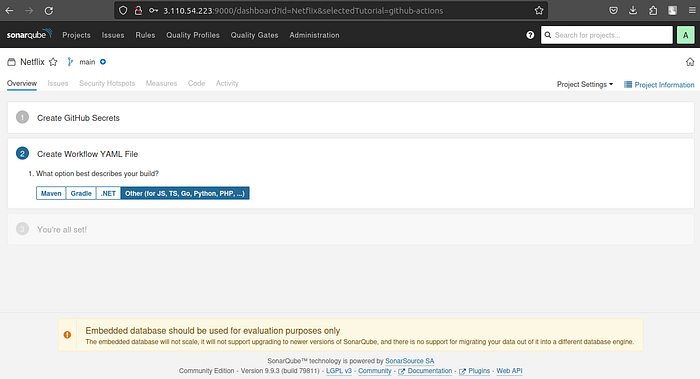

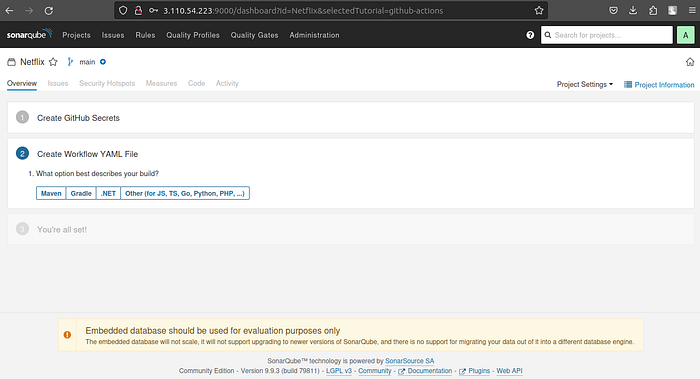

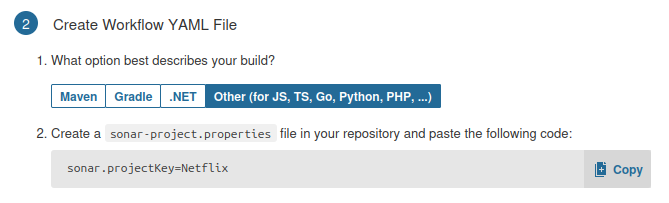

Now create your Workflow for your Project. In my case, the Netflix project is built using React Js. That’s why I am selecting Other

Now create your Workflow for your Project. In my case, the Netflix project is built using React Js. That’s why I am selecting Other

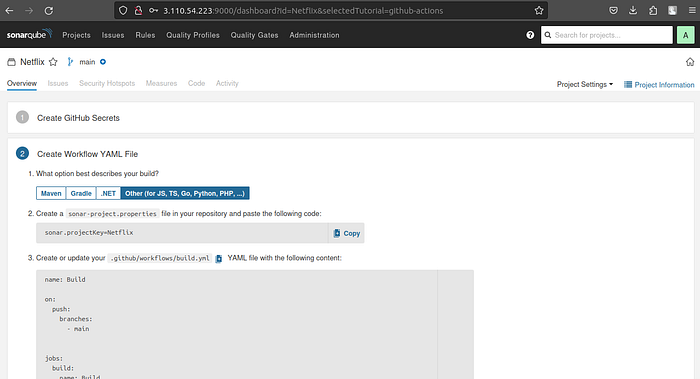

Now it Generates and workflow for my Project

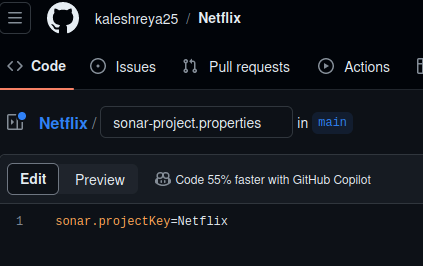

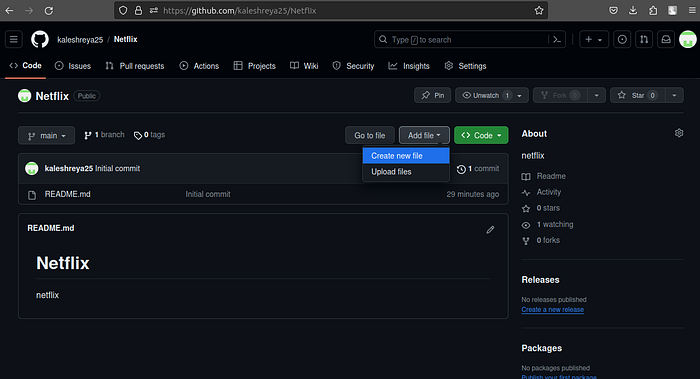

Go back to GitHub. click on Add file and then create a new file

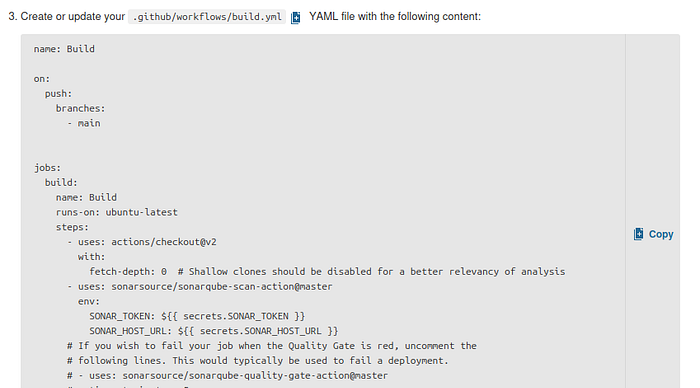

Go back to the Sonarqube dashboard and copy the file name and content

The content to add to the file is (copied from the above image)

Add in GitHub like this

Let’s add our workflow

To do that click on Add file and then click on Create a new file

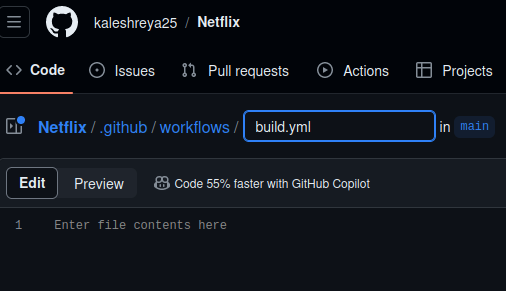

Here is the file name

.github/workflows/build.yml

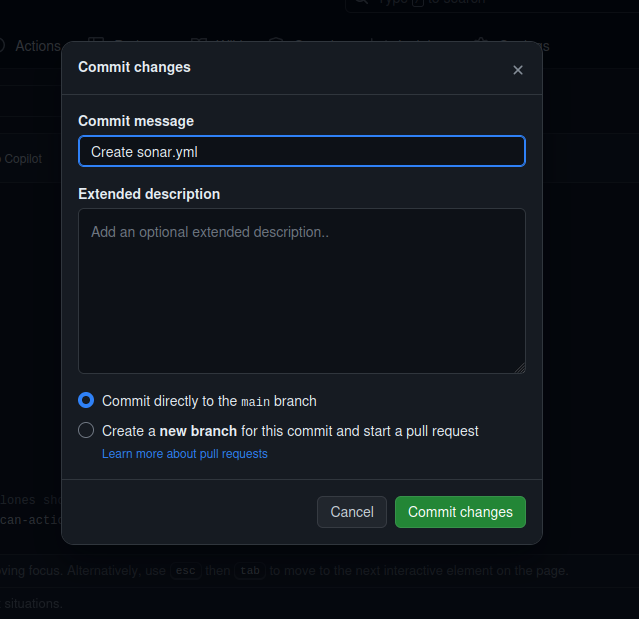

Click on commit changes

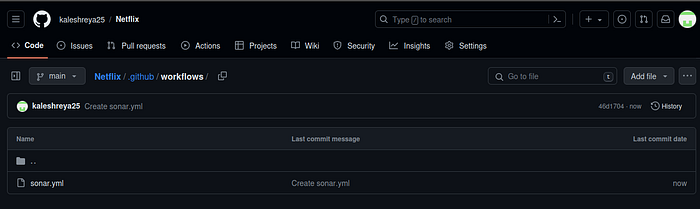

Now workflow is created.

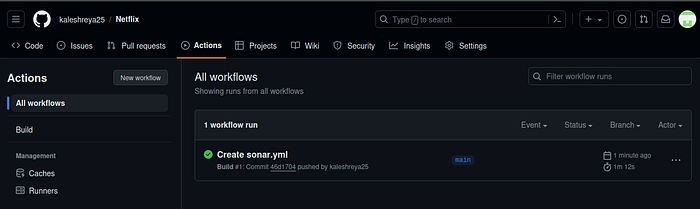

Click on Actions now

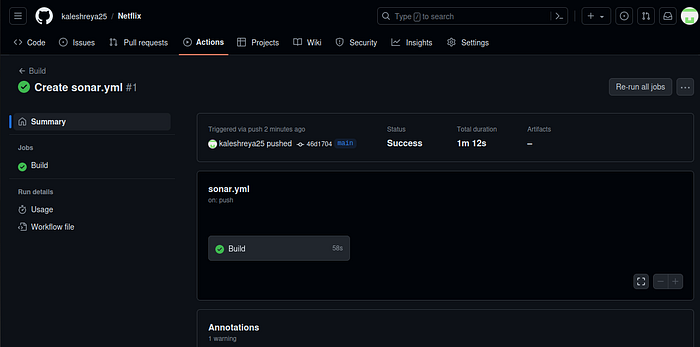

Now it’s automatically started the workflow

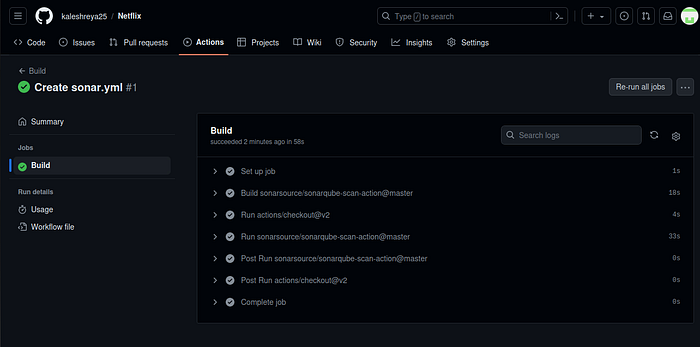

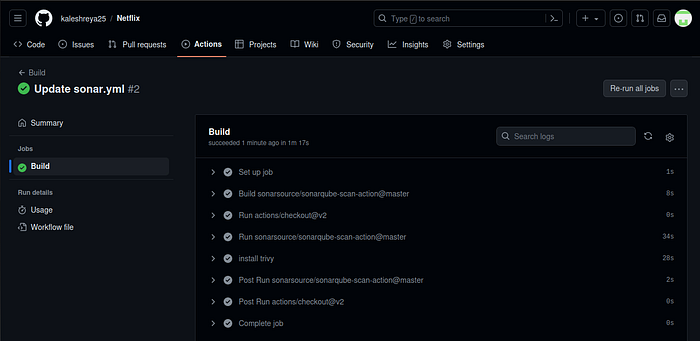

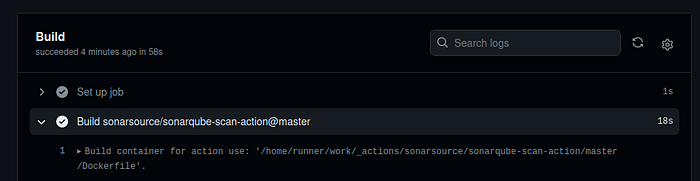

Let’s click on Build and see what are the steps involved

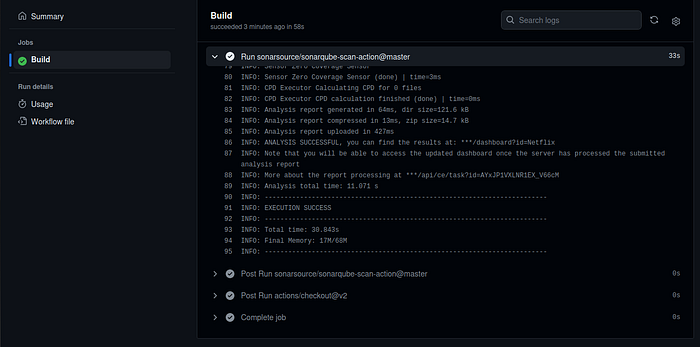

Click on Run Sonarsource and you can do this after the build completion

Build complete.

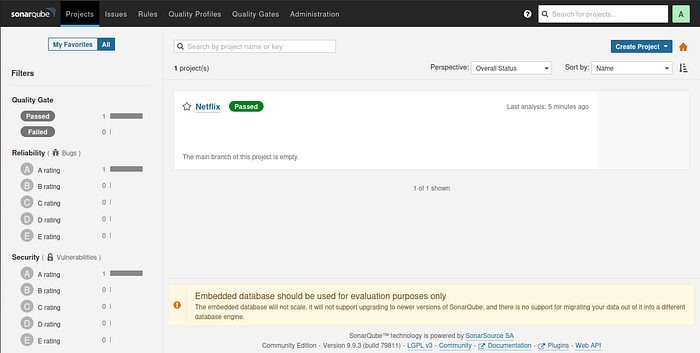

Go to the Sonarqube dashboard and click on projects and you can see the analysis

Step3: Let’s scan files using Trivy

Add this code to your sonar.yml (I mean workflow)

- name: install trivy
  run: |
    #install trivy
    sudo apt-get install wget apt-transport-https gnupg lsb-release -y
    wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | gpg --dearmor | sudo tee /usr/share/keyrings/trivy.gpg > /dev/null
    echo "deb [signed-by=/usr/share/keyrings/trivy.gpg] https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main" | sudo tee -a /etc/apt/sources.list.d/trivy.list
    sudo apt-get update
    sudo apt-get install trivy -y
    #command to scan files
    trivy fs .

GitHub Actions workflow step that installs Trivy, a popular open-source vulnerability scanner for containers, and then uses it to scan the files.

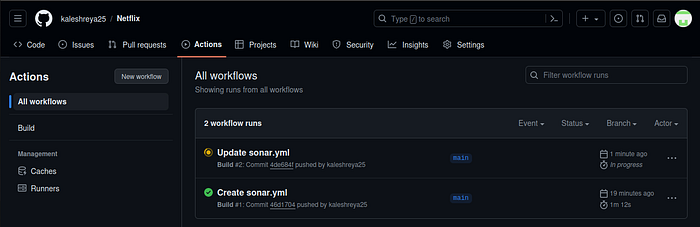

Click on actions again

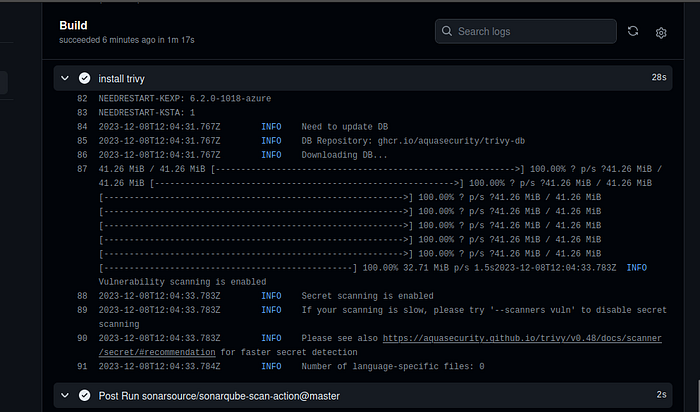

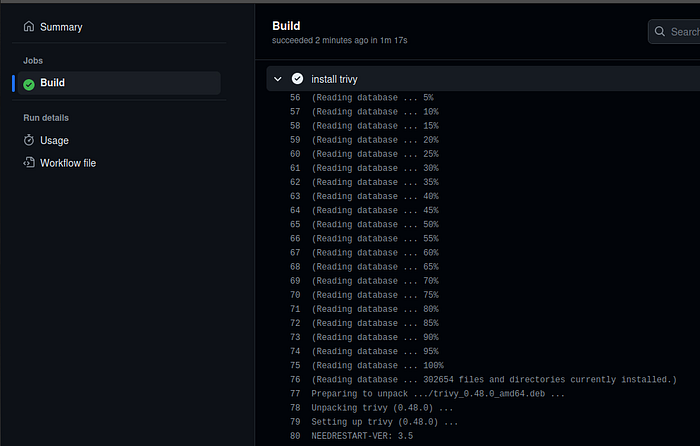

It started the workflow build
